MILTON ROY MIXING · FLORIDA
HELISEM and HM mixers.
Match mixing to the process.
Review Milton Roy top-entry mixing equipment with Hudson Pump & Equipment. We help Florida customers define the vessel, liquid properties, and mixing objective for HELISEM and HM applications.

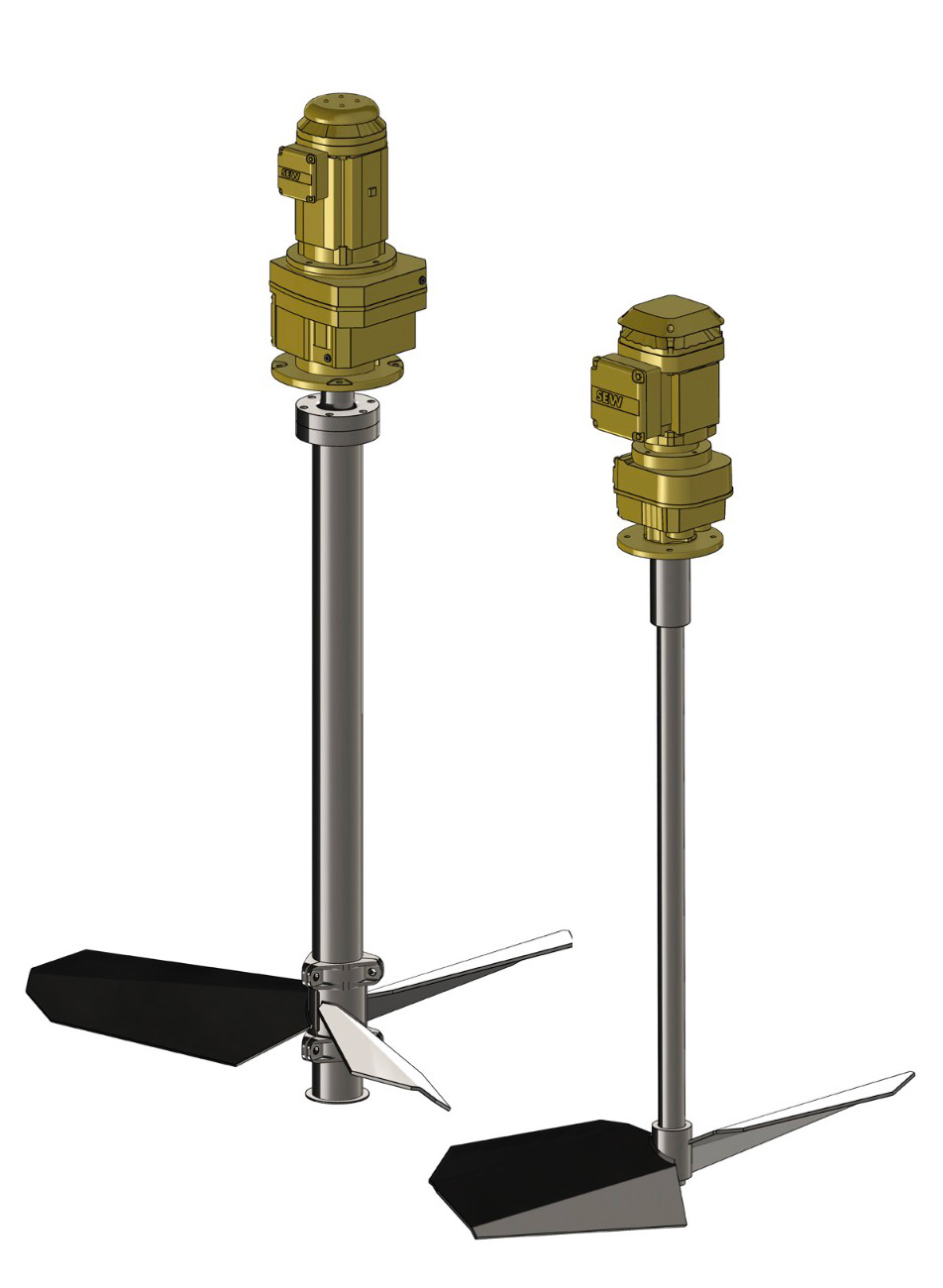

Milton Roy HELISEM and HM · original product image
Manufacturer product information ↗
Top-entry mixingHELISEM and HM product families
Process-based selectionVessel, liquid, and mixing objective
Florida supportNew equipment and replacement review
BUILT AROUND YOUR APPLICATION
Two families. Application-specific configurations.
Mixing duties can range from rapid blending to gentle flocculation. Evaluate the required fluid motion and process outcome before choosing the mixer.
01 / PRODUCT DETAILS
HELISEM range
The HELISEM family includes configurations for different mixing duties. Review the model, drive, shaft, and impeller against tank geometry and the required process result.
02 / PRODUCT DETAILS
HM range
HM top-entry mixers offer another platform for industrial mixing applications. The selected arrangement needs to account for fluid properties, mounting requirements, and operating conditions.
03 / PRODUCT DETAILS
Water-treatment duty
Mixers can support chemical dispersion, coagulation, or flocculation where the process calls for those steps. Mixing itself does not filter out contaminants; downstream separation is a separate process function.
Impeller, motor power, speed, and shaft arrangement are selection outputs. Do not assume that a family-wide performance or energy-saving claim applies to every installation.
APPLICATION GUIDANCE
Match the equipment
to the operating conditions.
Define the mixing result
Describe blending, suspension, dispersion, or flocculation needs, including batch time and any process limits on shear.
Describe the tank and contents
Provide vessel dimensions, baffles, working liquid levels, viscosity, density, solids concentration, and temperature. Include any variation between operating stages.
Check mechanical and site details
Provide mounting dimensions, vessel support information, overhead clearance, electrical supply, and environment. Include drawings and existing mixer nameplates for replacements.
HUDSON PUMP & EQUIPMENT
Talk through the details.
Hudson can help organize the application information for a mixer inquiry and review the available manufacturer documentation. For an existing process problem, explain the observed result and the desired improvement.
COMMON QUESTIONS
Before you specify.
Does a mixer remove impurities from the water?
A mixer creates the fluid motion needed for a process step. Solids removal requires the appropriate separation or filtration process elsewhere in the treatment system.
Can the same impeller serve every mixing duty?
No. Required flow pattern, shear, liquid properties, and tank geometry influence the impeller and speed selection.
What should I send for a mixer replacement?
Provide the model and serial number, motor data, mounting dimensions, shaft and impeller details, tank drawing, and current process requirements.
LET’S REVIEW YOUR APPLICATION
Get product support
from Hudson.
Send your operating requirements, existing equipment details, and Florida facility location. Hudson can help review the application and prepare the next step.
863-665-7867 · Lakeland, Florida
Helpful details to include
- Mixing objective and required process result
- Tank dimensions, baffles, and liquid levels
- Liquid properties, solids, and temperature
- Mixing cycle and allowable shear
- Mounting, support, and available clearance
- Existing equipment details and facility location
